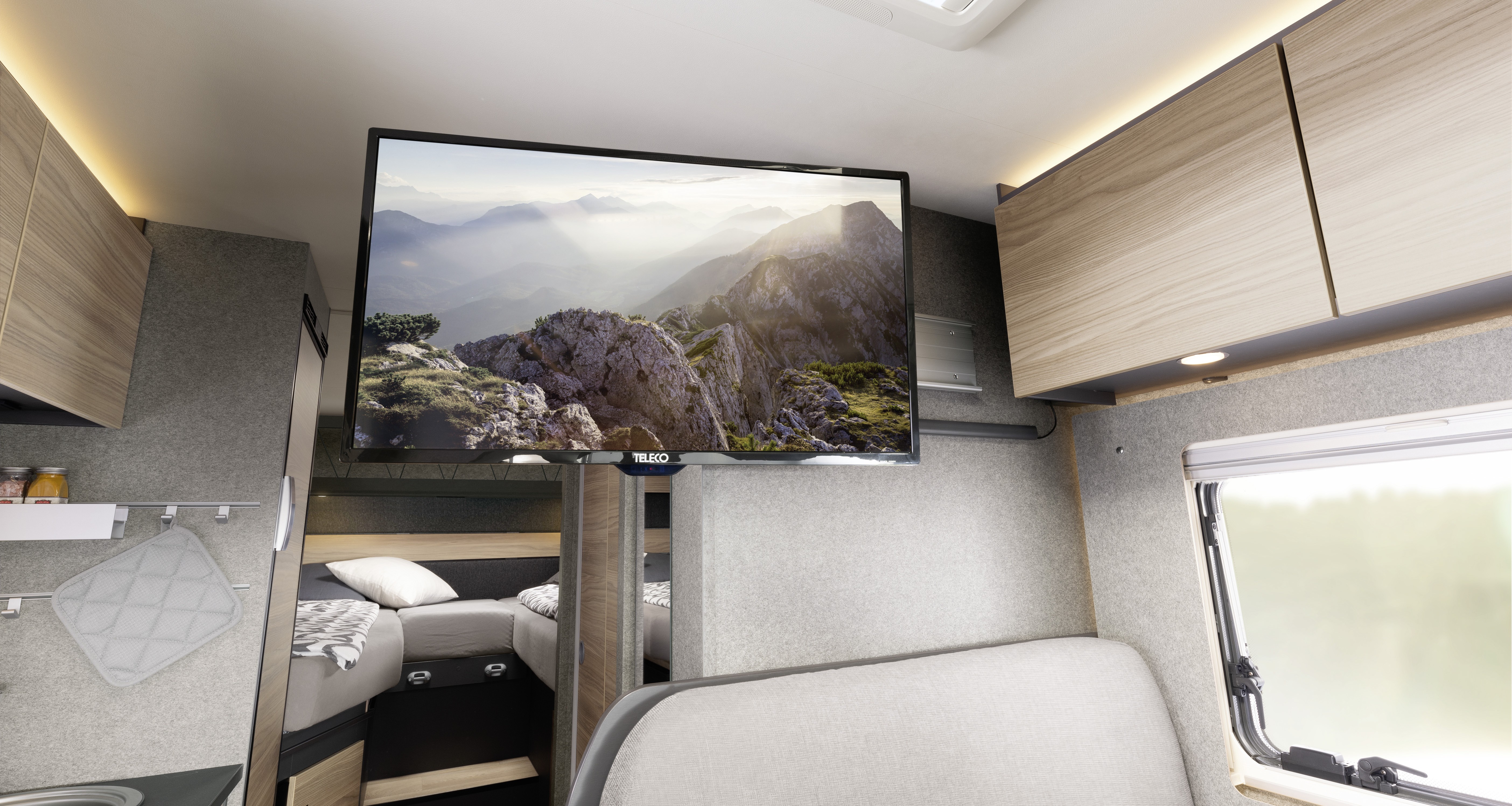

Television set
Before travelling, remove the TV set from the support and stow it away safely.
Before starting the journey, bring the flat screen and the screen holder into the basic position and secure them. If the screen mount is installed in a TV cabinet: Close the TV cabinet.
Before each journey, check that the aerial is in the park position. Danger of accident! Parking position is called: The antenna points to the rear, is fully lowered and is locked in this position.
Bracket in the TV cabinet
- The flat screen is attached to a pull-out in the TV cabinet.
Pull the TV console forwards:
Press the release button (Fig. 124.5) and pull the flat screen holder for the handle forwards as far as it will go. (picture 124,4)
Swivelling the TV console:
Pull the release button (Fig. 124.1) and swivel the flat screen (Fig. 124.2) to the desired position.
Loosen the knurled screw (Fig. 124.3).
Set the desired inclination of the flat screen and retighten the knurled screw.
